Comparison between laser welding machine and laser cutting machine
( Updated: July,23th,2024 ) |
Comparison between laser welding machine and laser cutting machine Laser welding machine
Use high-energy pulsed laser to achieve welding. The laser power supply first lights the pulsed xenon lamp, and then discharges the pulsed xenon lamp through the laser power supply to form a light wave with a certain frequency and a certain pulse width. The light wave is radiated to the Nd³:YAG laser crystal through the focusing cavity, and the Nd³:YAG laser crystal is stimulated to emit light. After the laser resonant cavity resonates, a pulsed laser with a wavelength of 1064nm is emitted. After beam expansion, reflection, (or transmission through optical fiber) and focusing, the pulsed laser hits the object to be welded; welding is completed under the control of PLC or industrial PC.
A new type of welding method, mainly for the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, lap welding and sealing welding;
Features:

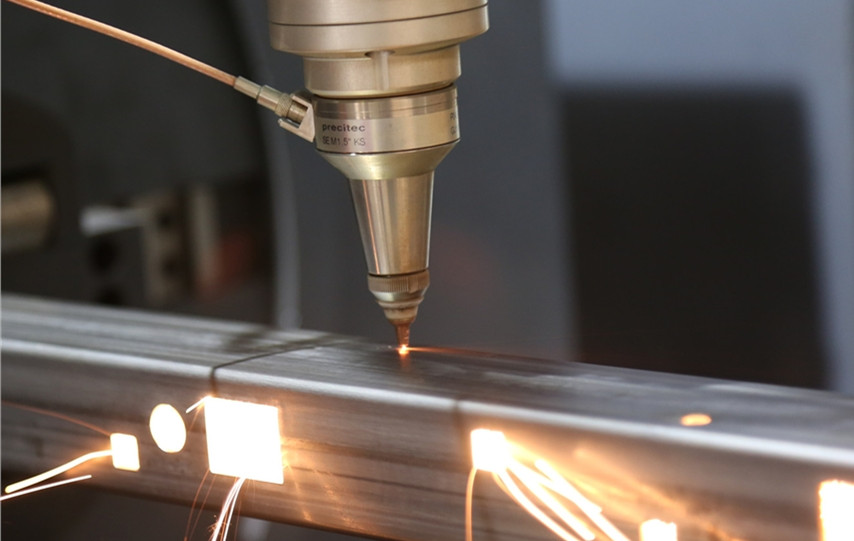

Laser cutting machine
Laser cutting is achieved by applying high-power density energy generated after laser focusing.
Under the control of the computer, the laser is discharged by pulses, thereby outputting controlled repetitive high-frequency pulse lasers to form a beam of a certain frequency and a certain pulse width. The pulse laser beam is transmitted and reflected by the optical path and focused on the surface of the processed object through the focusing lens group, forming a fine, high-energy density spot. The spot diameter is generally 0.01~0.4mm. The focal spot is located near the surface to be processed, and the processed material is melted or gasified at an instant high temperature.
Features:
|
 |
|
