Place of Origin:China
Brand Name: EASY WELD / OEM
Model Number: RWP-30
H.S code: 8468800000
Package: 1pcs/pack, polywood box
Payment: PAYPAL/WESTERN UNION/TT/LC
Delivery: in stock / within 20days
 |
|
|
|
|

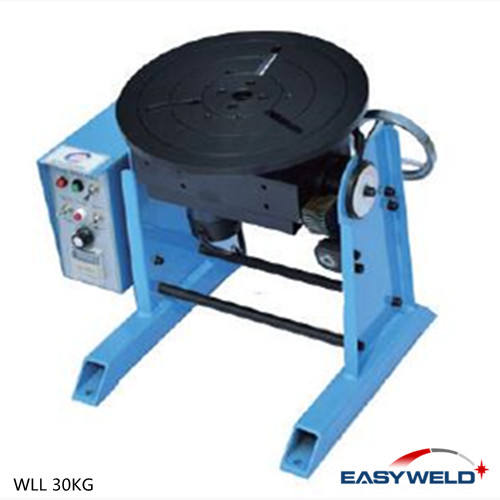

Rotary Welding Positioner
Description
Item:Light Duty Rotary Welding Positioner 30kg Weld Turntable With Chuck Rotary welding positioner feature:
Liberty welder hands, decrease labor intensity, highly boost productivity
Working with weld torch manipulator,link control with welding machine, the rotary welding positioner could composed as automatic welding station.
By full automatic weld station, it could reach perfect welding quality, with excellent quality consistency.
Flexible production procedure, various kinds attachment optional for special working surrounding
Competitive price fast delivery quality warranty.
Technical parameter
SN Model HD-30
1 Safety work load(horizontal) 30kg
2 Safety work load(vertical) 15kg
3 Table rotary speed 1-15r/min
4 Table tilt angle 0~90
5 Table diameter 315mm
6 Table height 340mm
7 Motor power 90w
8 Weight 28kg
9 Chuck recommended KD-125/200/300
10 Input power 1P220V50-60HZ
Description
The rotary welding positioner is composed by main frame, working table, rotary mechanism, electric control system and so on.
Foot pedal is using to control the motion of the welding positioner.
It is using to hold & rotate the work piece for application including circumferential seam welding/cutting/polishing/assembling and so on.
Welding chuck/torch adjustment accessories is optional to be equipped on the rotary welding positioner.
We accept OEM service with customer logo. Special design tailor made as per customer demanding also available. |
