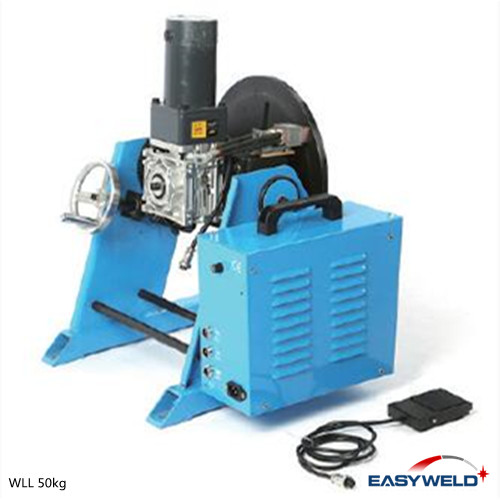

Welding Turntable Positioner
Description
Item:Rotary Weld Positioner Work Load 50kg Welding Turntable Positioner Welding turntable positioner feature:
Liberty welder hands, decrease labor intensity, highly boost productivity
Working with weld torch manipulator,link control with welding machine, the welding turntable positioner could composed as automatic welding station.
By full automatic weld station, it could reach perfect welding quality, with excellent quality consistency.
Flexible production procedure, various kinds attachment optional for special working surrounding
Competitive price fast delivery quality warranty.
Technical parameter
SN Model HD-50
1 Safety work load(horizontal) 50kg
2 Safety work load(vertical) 25kg
3 Table rotary speed 0.5-5r/min
4 Table tilt angle 0~90/Manual
5 Table diameter 315mm
6 Table height 340mm
7 Motor power 120w
8 Weight 32kg
9 Chuck recommended KD-125/200/300
10 Input power 1P220V50-60HZ
Description
The welding turntable positioner is composed by main frame, working table, rotary mechanism, electric control system and so on.
Foot pedal is using to control the motion of the welding positioner.
It is using to hold & rotate the work piece for application including circumferential seam welding/cutting/polishing/assembling and so on.
Welding chuck/torch adjustment accessories is optional to be equipped on the welding turntable positioner.
We accept OEM service with customer logo. Special design tailor made as per customer demanding also available. |
