Place of Origin:China
Brand Name: EASY WELD / OEM
Model Number: RWP-100
H.S code: 8468800000
Package: 1pcs/pack, polywood box
Payment: PAYPAL/WESTERN UNION/TT/LC
Delivery: in stock / within 20days
 |
|
|
|
|

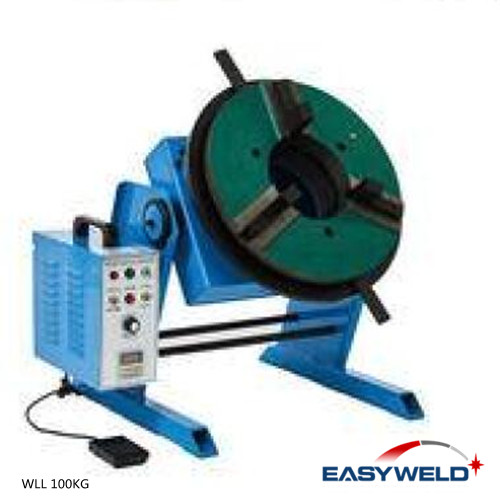

Tilt Turn Welding Positioner
Description
Item:Pipe Flange Rotary Turntable 100kg Tilt Turn Welding Positioner with Chuck Welding turntable positioner feature:
Liberty welder hands, decrease labor intensity, highly boost productivity.
Even less experienced weld operators can safely manipulate the welding positioner while concentrating on welding functions.
The tilt turn welding positioner enable better weld seam accessibility to the weldment.
Working with weld torch manipulator,link control with welding machine, the welding turntable positioner could composed as automatic welding station.
It is creating increased deposition rates.
By full automatic weld station, it could reach perfect welding quality, with excellent quality consistency.
Flexible production procedure, various kinds attachment optional for special working surrounding
The design takes up minimal floor space and allows unrestricted movement throughout the work area.
Technical parameter
SN Model RWP-100
1 Safety work load(horizontal) 100kg
2 Safety work load(vertical) 50kg
3 Table rotary speed 0.5-5r/min
4 Table tilt angle 0~90/Manual
5 Table diameter 400mm
6 Table height 500mm
7 Motor power 120w
8 Weight 75kg
9 Chuck recommended KD-200/300/400
10 Input power 1P220V50-60HZ
Description
The tilt turn welding positioner is composed by main frame, working table, rotary mechanism, electric control system and so on.
The welding positioner table could be tilted from horizontal(0 degree) to vertical (90 degree).
It also gives powered gear driven control of the table tilt.
It is using to hold & rotate the work piece for application including circumferential seam welding/cutting/polishing/assembling and so on.
The welding positioner table is rotated by variable speed to permit making circumferential welds at any desired speeds.
Various accessories like chuck/foot pedal/torch holder/manipulator etc extend the versatility of these units.
We accept OEM service with customer logo. Special design tailor made as per customer demanding also available. |
