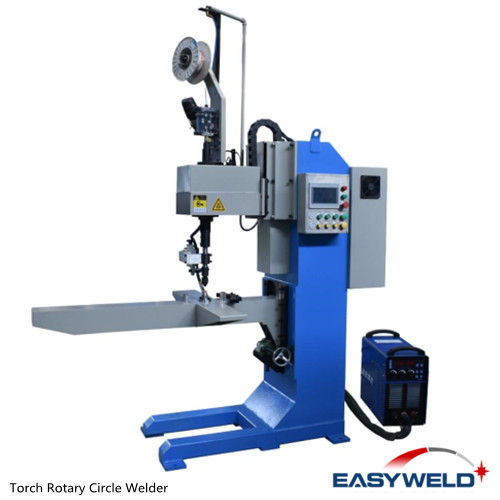

Torch Rotary Circle welding machine feature:

PLC control

Touch screen operation

Air cooled/water cooled robot weld torch optional as per welding parameter

Liberty welder hands, decrease labor intensity, highly boost productivity.

Even less experienced weld operators can safely manipulate the welding positioner while concentrating on welding functions.

It could reach perfect welding quality, with excellent quality consistency.



Technical parameter

1 Rotation speed: 1-8r.p.m

2 Air pressure: 0.4-0.6MPa

3 Welding torch adjustment: 30mm (up&down, left&right)

4 Welding power source: 350A MIG welding machine

5 Welding torch capacity 200A (match 1.0mm and 1.2mm wire)



Description:

The torch rotary circle welding machine is composed by main structure, torch rotary system, torch pressing & holding system, work piece jig, welding system, PLC control system, electric control system and so on.

Torch rotary circle welding machine is integrated welding station using to weld circular components with high through-put.

The series rotary torch welding machine are versatile and durable production equipment designed for a broad range parts, including tank-nipple for water heater tank, header of cylinders, tank-coupling and so on.

Welding torch position can be adjusted manually.Torch is fixed, cylinder will rotate automatically.

Welding torch can be adjusted up and down, left and right, dip angle, in order to meet the

welding requirements.

The torch rotary circle welding machine is using PLC control. User friendly touch screen operation. One touch full automatic welding procedure, suitable for large quantity production.

Except MIG welding, the welding method also could be TIG welding. Welding parameter could be set tailor made as per welding job requirement.

The torch rotary circle welding machine also called fitting welders, circle welders, header welders or port welders and so on.



We accept OEM service with customer logo. Special design tailor made as per customer demanding also available.
